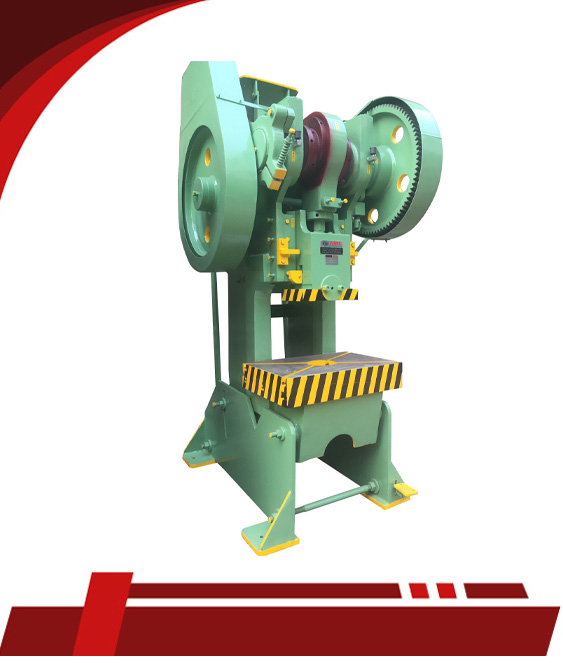

Inclinable Type Power Press
The Inclinable Type Power Press is designed for efficient metal forming and easy material discharge. Its adjustable inclinable frame allows the machine body to tilt for quick removal of stamped components and scrap material. Built with heavy-duty construction, high load-bearing capacity, and smooth operation, this machine is ideal for sheet metal work, automotive parts manufacturing, and industrial fabrication units.
| CAPACITY IN TONNES | 7.5 | 10 | 20 | 30 | 50 | 75 | 100 | 150 |
|---|---|---|---|---|---|---|---|---|
| Size of table (inches) | 11 × 17 | 13 × 19 | 16 × 22 | 17 × 24 | 21 × 30 | 24 × 34 | 30 × 36 | 32 × 40 |
| Bore in table | 4.25 | 5.5 | 6.5 | 7.25 | 8.25 | 9.5 | 10.5 | 11 |
| Shut height | 9.5 | 11.5 | 13 | 15 | 18 | 19 | 21 | 22 |
| Stroke adjustable | 2 | 3 | 3.5 | 4 | 5 | 5.25 | 6 | 6.5 |
| Bore in slide | 0.75 | 1 | 1.25 | 1.5 | 1.5 | 2 | 2 | 2.25 |
| Crank size | 2.5 | 2.75 | 3.5 | 4.5 | 5 | 5.5 | 6 | 6.5 |
| Screw dia. | 2.25 | 2.25 | 2.75 | 3.25 | 3.5 | 4 | 4.25 | 4.75 |
| Power required (H.P.) | 1 | 2 | 3 | 3 | 7.5 | 7.5 | 10 | 15 |
| Pulley size | 4 | 4 | 4 | 5 | 6 | 7 | 8 | 8 |
| Stroke per minute | 65 | 65 | 60 | 55 | 50 | 42 | 38 | 36 |
| R.P.M. | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 |
| Weight (K.G.) | 510 | 900 | 1350 | 1850 | 2700 | 3600 | 5100 | 5500 |
The Inclinable Type Power Press is a high-performance metal forming machine designed for efficient stamping and easy material discharge. Its inclinable frame structure allows the machine body to tilt at an angle, enabling quick removal of finished components and scrap material. This feature improves productivity and reduces manual handling. Built with a rigid frame and precision-engineered components, it ensures smooth, stable, and vibration-free operation during continuous production cycles.
-
Heavy-duty inclinable frame for easy scrap discharge and maintenance.
-
Precision slide alignment for accurate punching, stamping, and blanking.
-
Adjustable stroke length and shut height for versatile forming applications.
-
Strong crankshaft and balanced flywheel for smooth and energy-efficient operation.
-
Available in capacities ranging from 7.5 to 150 tons to meet diverse industrial requirements.
Our Inclinable Type Power Press Machine is widely used in sheet metal industries, automotive components manufacturing, hardware production, and fabrication units. The machine is equipped with durable internal mechanisms, advanced slide guiding systems, and a reliable lubrication setup to ensure long service life and reduced maintenance. Suitable for operations such as punching, bending, embossing, blanking, and forming, this machine delivers consistent performance with maximum efficiency and operator safety.
The Inclinable Type Power Press Machine is manufactured using premium-grade cast iron and high-strength steel components to ensure durability and long-term reliability. Its inclinable design improves workflow efficiency by allowing gravity-assisted discharge of finished products and scrap material.
The machine includes precision-ground slides, heavy-duty bearings, an efficient lubrication system, and overload protection features for safe operation. Compatible with automation systems and die tooling setups, it is available in multiple capacities including 7.5, 10, 20, 30, 50, 75, 100, and 150 tons — making it an ideal choice for industries seeking productivity, strength, and operational efficiency.
