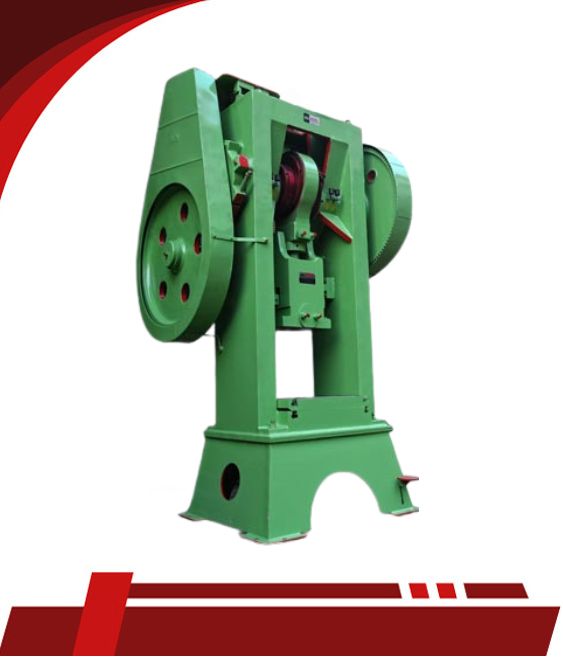

H-Type Power Press
H-Type Power Press
We have for our clients our H-Type Power Press that are high in performance and assure higher output. These machines are available in the following specifications:
Capacity In Tones
| Capacity (Tons) | Size of table (inches) | Bore in slide | Shut Height | Stroke Adjustable | Bore in slide (lower) | Crank Size | Power Required (H.P.) | Weight (K.G.) |
|---|---|---|---|---|---|---|---|---|
| 30 | 18X18 | 6.5 | 15 | 4 | 1.5 | 4.5 | 3 | 1650 |
| 50 | 23X23 | 7 | 18 | 5 | 1.5 | 5 | 5 | 2500 |
| 75 | 25X25 | 8 | 19 | 5.25 | 1.75 | 5.5 | 7.5 | 3600 |
| 100 | 26X26 | 9 | 19 | 6 | 2 | 6 | 10 | 4000 |
| 150 | 30X30 | 10 | 22 | 6.5 | 2 | 6.5 | 15 | 4800 |
| 200 | 32X32 | 11 | 24 | 7 | 2.5 | 7 | 20 | 5300 |
The H-Type Power Press is engineered for high-precision metal forming, exceptional durability, and continuous industrial operation. Designed to deliver consistent output with maximum tonnage efficiency, this machine is widely used in sheet metal industries, automotive component manufacturing, forging units, and heavy-duty punching applications. Its rigid H-frame structure ensures uniform load distribution, reduced deflection, and superior operational stability during high-impact cycles.
-
Heavy-duty H-frame construction for zero vibration performance.
-
High-precision slide alignment for accurate stamping and punching.
-
Adjustable stroke length suitable for multiple forming operations.
-
Low maintenance mechanism designed for long production cycles.
-
Available in multiple tonnage capacities from 30 to 200 tons.
Our H-Type Power Press Machine is built for industries that demand strength, accuracy, and speed. With advanced slide guidance, precision machining, and a robust crankshaft system, the machine ensures safe and smooth operation even under continuous heavy loading. Each unit is manufactured with premium-grade materials and undergoes strict quality testing to deliver long service life and high productivity. Whether you need deep drawing, bending, punching, coining, or embossing – this power press offers unmatched versatility and performance.
The H-Type Power Press Machine is equipped with high-grade components, including precision-ground slides, heavy-duty bearings, and a balanced flywheel for stable operation. Its adjustable shut height and customizable stroke length make it suitable for a wide range of industrial applications. Every model complies with industry-standard safety norms and can be integrated with automation units, feeders, and die tooling systems.
Features such as ergonomic control panels, lubrication systems, overload safety, and energy-efficient power consumption further enhance the value of the machine. The H-Type Power Press is designed for customers seeking reliability, superior performance, and reduced operational downtime. Available in 30, 50, 75, 100, 150, and 200-ton capacities to match diverse production needs.
